Hydro Systems Whirlpool Bathtub
Whirlpool Jets for Soothing Body Aches and Pains
For most of us, it's not possible to have a deep tissue massage every day. That's where the Whirlpool jet system from Hydro Systems comes in. Providing powerful massaging jets to target and alleviate sore, aching muscles, these high-performance jets are directed at specific body areas to promote increased blood flow, resulting in where-you-want-it pain relief, improved flexibility, and for some, the reduced appearance of cellulite. Whirlpool therapy can greatly benefit those with chronic pain or specific injuries, such as backaches, neck pain, sprains or other ailments. Let powerful, massaging water jets provide you with a deep, invigorating massage to relax tight muscles, rejuvenate muscular tissue and release your body's natural painkillers.Whirlpool Tub Features
• Six, eight or ten fully adjustable PVC jets
• Silent air induction
• 2.25 H.P. 110 volt pump with plug-in cord
• Rigid Schedule 40 thermally formed PVC pipe
• "Soft Touch" electronic control
• Sound Dampening Motor Pad
• Integral Tub EZ Level platform with pump installed
- Facilitates easy installation
- Standard pump and jet location only
• Custom located jets
• Cable Drain (Gold Finish Extra Charge)

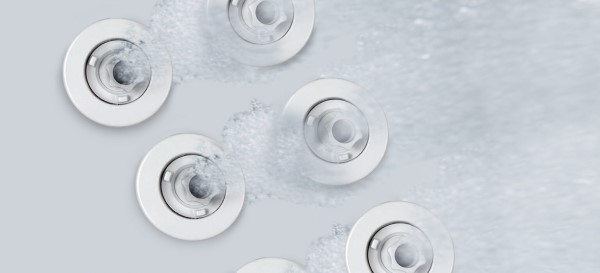

Standard Jets | Direction & Flow Adjustable Jets
The adjustable flow directional designer jet is Hydro Systems standard whirlpool jet. The direction of each jet is easily adjusted by pointing the nozzle in the desired direction. The amount of water flowing through the jet can be adjusted from full flow to completely off by rotating the escutcheon. It is 2½" in diameter and is available in a wide variety of colors and plated finishes.
Standard Genius Pump
2.25 HP
Hydro Systems exclusive Genius Pump is the standard pump for all Hydro Systems' whirlpool bathtubs. This self-draining, high performance, low noise pump and its rubber sound and vibration deadening pad is ideal for limited space installations. Available in 110V or 220 volt, 50 Hz or 60 Hz, this UL listed pump is backed by Hydro Systems limited warranty.
HydrOzone Ozone Purification
Ozonation has been used for over 100 years to sanitize municipal water sources. Almost all bottled water is treated with ozone. And more than 90% of hot tubs and spas already use ozone sanitation systems – not to mention most major water parks and large aquariums. Ozone is 200 times stronger than household bleach as a purifier, leaving your water pure, free of bacteria, viruses, spores, parasites, and chemicals. It is wonderful for drinking, or using in pools and hot tubs, and most importantly, it’s natural. Ozone is automatically introduced to the bath water when the pump is turned on. The HydrOzone system will operate maintenance-free for 9,000 one-hour bathing sessions. That’s an hour-long bath a day for approximately 25 years!
Electrical:
Whirlpool | 115 volt | 13 amp | One 20 amp dedicated GFCI
Hydro System Bath Tub Standard Features
Quality of Acrylic Sheet and Fiberglass Reinforcement
Hydro Systems uses only the highest quality acrylic. That quality combined with an extra thickness produces a superior product for our customers. Their exclusive resin and fiberglass structure combined with top quality acrylic make us leaders in heat reflectivity, structural integrity and dimensional stability.
Long-lasting, Beautiful Finishes
All Hydro Systems tubs are made of durable, easy to clean acrylic that will never fade, stain, or lose its luster. Their long-lasting, high gloss finish requires a minimal amount of care while providing both sound and temperature insulation. Choose from wide spectrum of colors that will make your bathing experience beautiful and relaxing.
Whirlpool Specific Options
• In-line Heater
27.103 | 110V, 6.0AMPS, .75KW | (MSRP $730.00)***
27.100 | 110V, 12.5AMPS, 1.5KW | (MSRP $815.00)
***27.103 Doesn't need a dedicated GFCI
• Low Water Protection
Protects the motor is the tub is accidentally turned on without water in the bath. Has a 30-minute timer.110V.
LOW.WAT-110 (MSRP $425.00)
• Custom Pump Locations
Customize the location of the pump (some restrictions apply), must include drawing.
69.116-CUS.PMP No Charge
• Jet Finish
Whirlpool system fittings include jet trim and suction cover, and are available in the following color matched colors:
White, Biscuit or Bone
Optional Jet Colors:
6 Jet | PLA.06-XXX
Polished Chrome or Polished Brass (MSRP $380.00)
Antique Brass, Brushed Brass, Satin Brass, Brushed Chrome, Polished Nickel, Satin Nickel (MSRP $704.00)
Polished Gold, Brushed Gold (MSRP $935.00)
8 Jet | PLA.08-XXX
Polished Chrome or Polished Brass (MSRP $485.00)
Antique Brass, Brushed Brass, Satin Brass, Brushed Chrome, Polished Nickel, Satin Nickel (MSRP $950.00)
Polished Gold, Brushed Gold (MSRP $1190.00)
10 Jet | PLA.10-XXX
Polished Chrome or Polished Brass (MSRP $515.00)
Antique Brass, Brushed Brass, Satin Brass, Brushed Chrome, Polished Nickel, Satin Nickel (MSRP $1095.00)
Polished Gold, Brushed Gold (MSRP $1330.00)
• Additional Standard Jets
JET.STD-XXX
(List Price Each)
White, Biscuit or Bone (MSRP $200.00)
Polished Chrome or Polished Brass (MSRP $235.00)
Antique Brass, Brushed Brass, Satin Brass, Brushed Chrome, Polished Nickel, Satin Nickel (MSRP $285.00)
Polished Gold, Brushed Gold, Satin Gold (MSRP $325.00)
• Whirlpool Jet Upgrades:
- Swirling Adjustable
The adjustable flow swirling designer jet is a popular upgrade from the standard designer jet. Instead of pointing the nozzle in one direction, the nozzle spins to provide a swirling, massaging flow of water. The amount of flow can be adjusted by turning the escutcheon. The swirling designer jet is also 2½" in diameter and is available in all the same colors and plated finishes as the standard designer jet.
Swirling Jet Upgrade (List Price Each)
JUP.SWI-XXX (MSRP $65.00)
Additional Swirling Jets (List Price Each)
JET.SWI-XXX
White, Biscuit, Bone (MSRP $200.00)
Polished Chrome or Polished Brass (MSRP $235.00)
Antique Brass, Brushed Brass, Satin Brass, Brushed Chrome, Polished Nickel, Satin Nickel (MSRP $285.00)
Polished Gold, Brushed Gold, Satin Gold (MSRP $325.00)
- Jumbo Jet
This optional extra large therapeutic jet was adapted from the outdoor spa industry and adds new dimension to hydro massage bathing comfort and enjoyment. It has a higher flow rate than the standard jet, but with less velocity. This jet can be easily directed by pointing the nozzle towards the desired location for a soothing, gentle massage. The amount of flow can be adjusted, but not turned completely off, by turning the insert. This jet is just over 3" in diameter and is available in many popular colors or with plated metallic trim.
***MAX 4 Jumbo Jets***
Jumbo Jet Upgrade (List Price Each)
JUP.JJ-XX (MSRP $105.00)
Additional Jumbo Jet (List Price Each)
White, Biscuit, Bone (MSRP $210.00)
Polished Chrome or Polished Brass (MSRP $245.00)
Antique Brass, Brushed Brass, Satin Brass, Brushed Chrome, Polished Nickel, Satin Nickel (MSRP $290.00)
Polished Gold, Brushed Gold, Satin Gold (MSRP $335.00)
- Rotating Jet
This extra large spinning therapeutic jet was also adapted from the outdoor spa industry. Similar to the swirling designer jet, the jumbo rotating jet provides a spinning, massaging action. Turning the insert adjusts the amount of flow, but unlike the standard and swirling designer jets, does not turn the flow completely off. This jet is just over 3" in diameter and is available in the same popular colors and plated finishes as the Jumbo Jet.
Rotating Jet Upgrade (List Price Each)
JUP.JR-XX (MSRP $105.00)
Additional Rotating Jet (List Price Each)
JET.JR-XXX
White, Biscuit, Bone (MSRP $210.00)
Polished Chrome or Polished Brass (MSRP $245.00)
Antique Brass, Brushed Brass, Satin Brass, Brushed Chrome, Polished Nickel, Satin Nickel (MSRP $290.00)
Polished Gold, Brushed Gold, Satin Gold (MSRP $335.00)
• Back Masseuse
Back pain is the second most common reason people in the U.S. visit the doctor each year.
Millions of people suffer needlessly from back pain. With Hydro Systems' Back Masseuse, you can end that nagging pain and enjoy increased flexibility. You'll enjoy a measurable reduction in pain through intensive hydrotherapy focused on your back and spinal column. Using six strategically located jets, our Back Masseuse is designed to heighten the therapeutic effects of hydrotherapy.
Measurements: Jets 5" in between, rows 2 1/2" apart (approximate)
Back Masseuse System 1
These jets are available with the Back Masseuse System 1 and are installed in a series of 6 jets operated by a single volume control. A pulsation massage is creating by the swirling action of these jets, providing greater relief than a single jet.
(MSRP)
BAC.MA1-XXX
White, Biscuit or Bone (MSRP $905.00)
Polished Chrome or Polished Brass (MSRP $1050.00)
Satin Nickel, Brushed Nickel (MSRP $1195.00)
Back Masseuse System 2
These jets are available with the Back Masseuse System 2 and are controlled by an electronic keypad. This 6 jet series offers direct flow onto your back. The electronic keypad directs the jets to operate in a Shiatsu pattern utilizing only two jets at a time, as well as the speed of transition from one pair of jets to another.
BAC.MA2-XXX (MSRP $1825.00)
• Neck Masseuse
The neck is the body's most vital passageway. Circulation through this small region is key to relieving muscle tightening. Muscle tightening is the result of accumulated stress and poor circulation. Each negative aspect works on the other to create discomfort. The Neck Masseuse is designed to increase circulation and relax muscle tension. The Neck Masseuse sends hydro massaging water onto the neck. You select the pulse level. Level one is subtle and sleepy. Level two is attention getting and soothing. Level three is intense for maximum stress relief.
PIL.NEC-XXX | White, Bone or Black (MSRP $855.00)
See Hydro Systems Jetted Pillow→ | Video
• HydrOzone UV Combo System
The HydrOzone UV Combo System gives you all the benefits of the standard HydrOzone but adds in the use of an Ultraviolet (UV) light. Ultraviolet light rays are proven to penetrate harmful pathogens in your home’s water and destroy illness-causing microorganisms by attacking their genetic core (DNA). Disinfecting your water with Ultraviolet light is exceptionally simple, effective and environmentally safe. UV systems destroy 99.99% of harmful microorganisms without adding chemicals.
Only for whirlpool and combo systems.
110 V | OZUV.110 ($1170.00 MSRP)
220 V | OZUV.220 ($1170.00 MSRP)
