Isenberg Custom Shower

3/4" Thermostatic Valve | TVH.4201
Serie #.4201 Trim & Valve

•
• Temperature control
  Combine with:
  Volume Control or Diverter
•
  See All Series Thermostatic Sets →

13.0 GPM @ 60 PSI
Simultaneous water output from both A & B unless one is capped
Integrated Check Valves for back-flow prevention
Extensions Available – TVH.E185
Technical Sheet

•

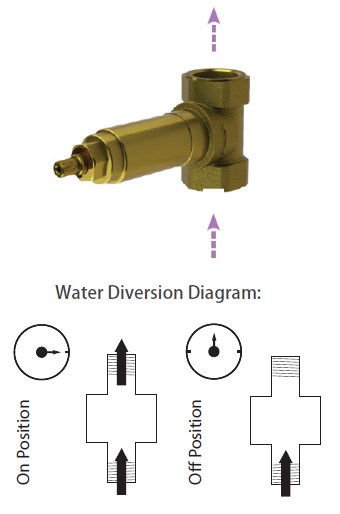

  .4511
  Volume Control
  13.0 GPM Flow Rate
  Handle controls volume of water flowing through the valve
  Technical Sheet

  1, 2 or 3 Output Shower
•

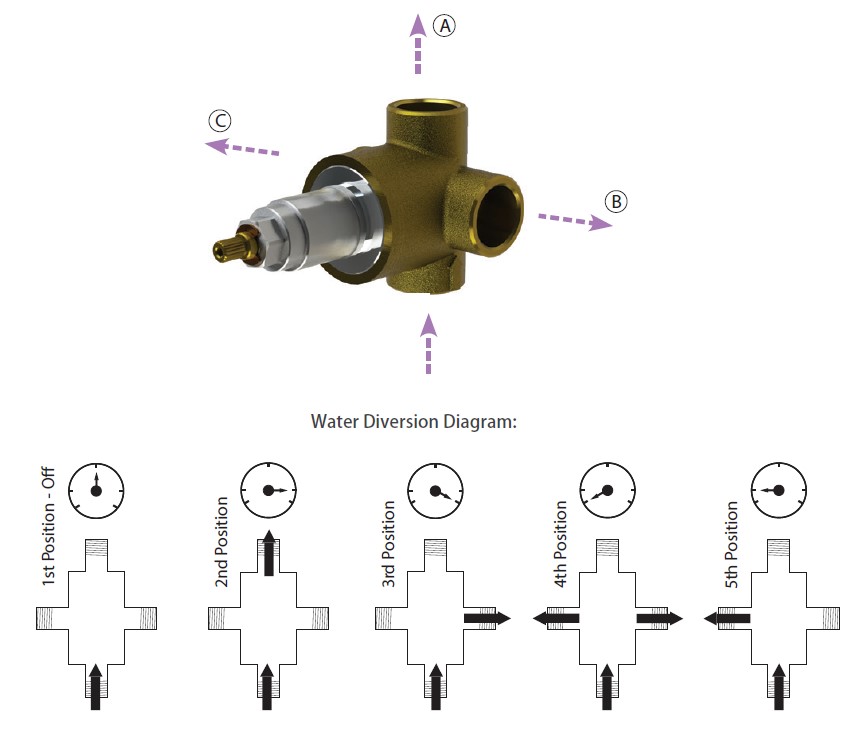

  .4371
  3-Way Diverter
  13.0 GPM Flow Rate
  Handle diverts water between 3 outlets. (Shared)
  Technical Sheet

  3 Output Shower

3/4" Thermostatic Valve with Volume Control | TVH.4101
Serie #.4101 Rectangle Trim & Valve
Serie #.4102 Round Trim & Valve
1 Output Shower

•
• Top handle
  - volume control
  Bottom handle:
  - temperature control

  Water output A only
•
  See All Series 2 Handle Sets →

13.0 GPM @ 60 PSI
Integrated Check Valves for back-flow prevention
Extensions Available – TVH.4101E
Technical Sheet

3/4" Thermostatic Valve with Volume Control | TVH.2720
Serie #.2720 Trim & Valve
1 Output Shower

•
• Top handle
  - volume control
  Bottom handle:
  - temperature control

  Water output A only
•
  See All Series 2 Handle Sets →

8.0 GPM @ 60 PSI
Supply Stops
Extensions Available – TVH.4101E
Technical Sheet

3/4" Thermostatic Valve with 2 Way Diverter | TVH.4420F
Serie #.4420 Rectangle Trim & Valve
Serie #.4421 Round Trim & Valve
2 Output Shower | Non-shared

•
• Top handle
  - volume control & A or B
  Bottom handle:
  - temperature control

  Water output A or B
  No shared Flow
•
  See All Series 2 Handle Sets →

8.0 GPM @ 60 PSI
Integrated Check Valves for back-flow prevention
Integrated Volume Control
Extensions Available – TVH.4101E
Technical Sheet

Total 3 Positions with only 1 port active at one time.
- Position 0 - Off - No Water Flow
- Position 1 - Output B Activated
- Position 2 - Output C Activated

2 Output Shower | Shared
A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time:
#15103 ($73.00)

3/4" Thermostatic Valve with 2 Way Diverter | TVH.2717F
Serie #.2717 Trim & Valve
2 Output Shower | Non-shared

•
• Left handle:
  - volume control & A or B
  Right handle:
  - temperature control

  Water output A or B
  No shared Flow
•
  See All Series 2 Handle Sets →

8.0 GPM @ 60 PSI
Supply Stops
Integrated Volume Control
Extensions Available – TVH.4101E
Technical Sheet

Total 3 Positions with only 1 port active at one time.
- Position 0 - Off - No Water Flow
- Position 1 - Output B Activated
- Position 2 - Output C Activated

2 Output Shower | Shared
A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time:
#15103 ($73.00)

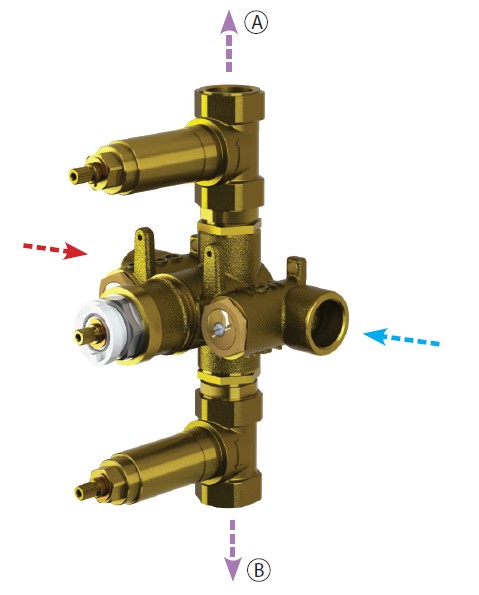

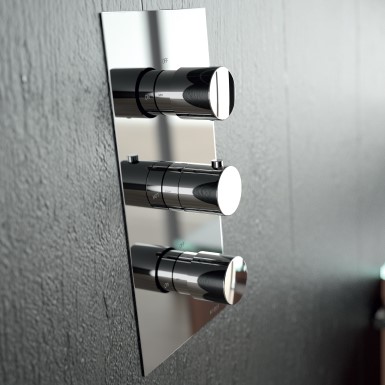

3/4" Thermostatic Valve with 2 Volume Controls | TVH.4401
Serie #.4401 Trim & Valve
2 Output Shower | Shared

•
• Top handle
  - volume control
  Center handle
  - temperature control
  Bottom handle:
  - volume control

  Water output A or/and B
  Shared Flow
•
  See All Series 3 Handle Sets →

13.0 GPM @ 60 PSI
Integrated Check Valves for back-flow prevention
Extensions Available – TVH.4401E
Technical Sheet

3/4" Thermostatic Valve with 3-Way Diverter | TVH.4301F
Serie #.4301 Rectangle Trim & Valve
Serie #.4302 Round Trim & Valve
3 Output Shower | Non-shared

•
• Top handle
  - volume control & A, B or C
  Bottom handle:
  - temperature control

  No Shared Flow
•
  See All Series 2 Handle Sets →

8.0 GPM @ 60 PSI
Integrated Check Valves for back-flow prevention
Integrated Volume Control
Extensions Available – TVH.4101E
Technical Sheet

Total 6 Positions, with only 1 port active at one time.
- Position 0 - Off - No Water Flow
- Position 1 - Output B Activated
- Position 2 - Off - No Water Flow
- Position 3 - Output A Activated
- Position 4 - Off - No Water Flow
- Position 5 - Output C Activated

2 Output Shower | Shared
A shared port operation cartridge [Model # 15200] can also be used to activate 2 ports at the same time:
#15200 ($73.00)

3/4" Thermostatic Valve with 3-Way Diverter | TVH.2705
Serie #.2780 Vertical Trim & Valve
3 Output Shower | Non-shared

•
• Left handle
  - volume control & A, B or C
  Right handle:
  - temperature control

  No Shared Flow
•
  See All Series 2 Handle Sets →

8.0 GPM @ 60 PSI
Supply Stops
Integrated Volume Control
Extensions Available – TVH.4101E
Technical Sheet

Total 6 Positions, with only 1 port active at one time.
- Position 0 - Off - No Water Flow
- Position 1 - Output B Activated
- Position 2 - Off - No Water Flow
- Position 3 - Output A Activated
- Position 4 - Off - No Water Flow
- Position 5 - Output C Activated

2 Output Shower | Shared
A shared port operation cartridge [Model # 15200] can also be used to activate 2 ports at the same time:
#15200 ($73.00)

3/4" Thermostatic Valve with 3-Way Diverter | TVH.2705
Serie #.2705 Horizontal Trim & Valve
3 Output Shower | Non-shared

•
• Left handle
  - volume control & A, B or C
  Right handle:
  - temperature control

  No Shared Flow
•
  See All Series 2 Handle Sets →

8.0 GPM @ 60 PSI
Supply Stops
Integrated Volume Control
Extensions Available – TVH.4101E
Technical Sheet

Total 6 Positions, with only 1 port active at one time.
- Position 0 - Off - No Water Flow
- Position 1 - Output B Activated
- Position 2 - Off - No Water Flow
- Position 3 - Output A Activated
- Position 4 - Off - No Water Flow
- Position 5 - Output C Activated

2 Output Shower | Shared
A shared port operation cartridge [Model # 15200] can also be used to activate 2 ports at the same time:
#15200 ($73.00)

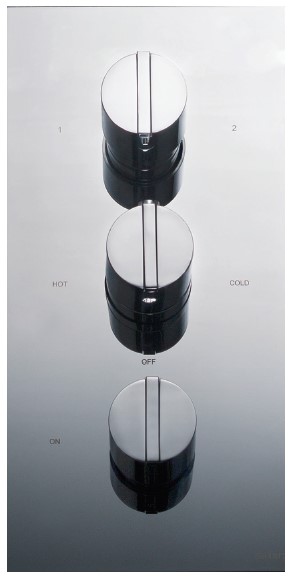

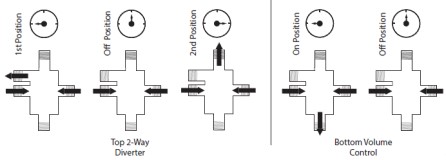

3/4" Thermostatic Valve with Volume Control & 2-Way Diverter | TVH.4501
Serie #.4501 Trim & Valve
3 Output Shower

•
• Top handle
  - volume control & A or B
  Center handle
  - temperature control
  Bottom handle:
  - volume control C

  A or B can be on the same time as C
•
  See All Series 3 Handle Sets →

13.0 GPM @ 60 PSI
Integrated Check Valves for back-flow prevention
Integrated Volume Control
Extensions Available – TVH.4101E
Technical Sheet

3/4" Thermostatic Valve with 2 Diverters | TVH.4801
Serie #.4801 Trim & Valve
4 Output Shower

•
• Top handle
  - volume control & A or B
  Center handle
  - temperature control
  Bottom handle:
  - volume control & C or D

  A or B can be on the same time as C or D
•
  See All Series 3 Handle Sets →

8.0 GPM @ 60 PSI
Integrated Check Valves for back-flow prevention
Integrated Volume Control
Extensions Available – TVH.4101E
Technical Sheet

1/2" Pressure Balance Valve
1 Output Shower

•
• Single Handle
  - Lift for volume control
  - Left or right for temperature control
•

5.0 GPM @ 60 PSI
Integrated Service Stops
Extensions Available – PBV.E185
Simultaneous water output from both A & B unless one is capped
Technical Sheet

1/2" Pressure Balance Valve with Diverter
2 Output Shower

•
• Bottom Handle
  - Lift for volume control
  - Left or right for temperature control
  Top Handle
  - Position 1| bottom port active
  - Position 2 | water output in low transition mode flow divided between two outputs
  - Position 3 | top port active
•

5.0 GPM @ 60 PSI
Integrated Service Stops
Extensions Available – PBV.2100E
Technical Sheet
